NER class U, LNER/BR class N10 0-6-2T loco chassis.

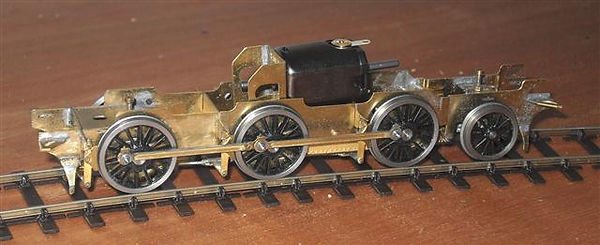

©Peter Stanger 2011 All rights reserved.  Our new N10 loco chassis.  In EM and P4 gauge the Mashima 1420D motor sits between the frames.

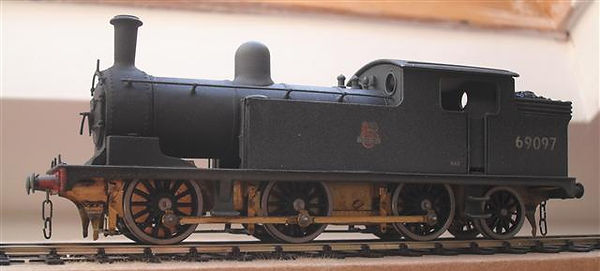

© Peter Stanger 2011 All rights reserved. The finished model after being painted and weathered using a combination of weathering powders and an air brush with acrylic paints.  69097 was a Bowes Bridge engine.

This chassis for the Alexander Models kit. It's is now available and costs £50.00 plus £3.00 P&P. This applies to UK Mainland only.

Customers please note.  We don't cash Customer's cheques or request a BACS transfer payment until your order is ready for dispatch.



Initially available in EM/P4 only. OO versions may follow if enough interest is registered to justify the set up and production costs.



Due to unexpected demand for a chassis to fit the Connoisseur Models 4mm scale N10 kit,  we have produced a dedicated etch for this specific model in EM/P4 only.  Please note when ordering a chassis for the Connoisseur kit please say so as there are significant differences between this chassis and the chassis for the Alexander Models kit.

                                           Chassis specification.



1.   Suppled with comprehensive assembly instructions and computer drawn 3D diagrams

2.   Etched in 0.38mm nickel silver for superior strength.  No need to buy an expensive     chassis assembly jig, this chassis can be folded up around a 12" steel rule.

3.   All parts are clearly numbered on the etched fret.

4.   All chassis' have been built and proven by us before being offered for sale to the public.

5.   Features full profile frames where practical and is prototypically waisted at the rear.

6.   All 8-wheels are compensated and load bearing to optimise load hauling.

7.   Leading coupled axle runs in horn blocks.

8.   Horn block s are pre assembled and ready for use.

9.   Leading coupled axle and radial axle are ride heights are adjustable to achieve optimum riding qualities.

10.  Prototypical load bearing radial truck with 1.25mm per side movement.

11.  Gearbox incorporated into the rear compensation unit ensuring constant mesh and    smooth running at all times.

12.  Motor can be removed without removing the gearbox.

13.  Supplied with 54:1 double reduction gears for good slow running and a fair turn of speed.

14.  Brake gear is removable to assist with wheel fitting.

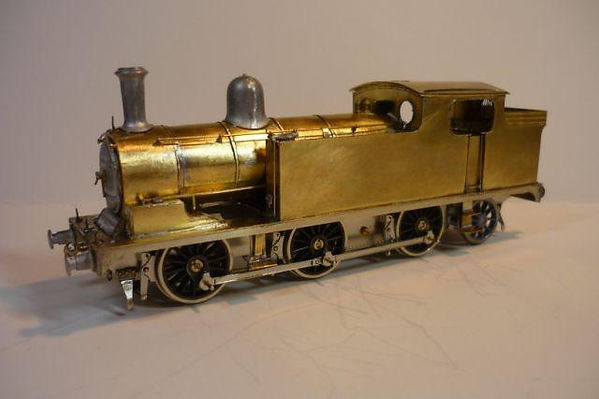

© Graham Dixon 2011 All rights reserved.  The above image is of a 4mm scale Connoisseur kits NER class "U", LNER/BR class N10 loco with our N10 EM gauge Connoisseur Easi-Rider chassis.  The chassis was produced especially for this now no longer available but still very nice etched kit. It differs from our Alexander models version with revised front and rear fixings.  All other features are the same as mentioned in the chassis specification data above.  The owner tells me that this model will be finished as 69109 another of the Bowes Bridge engines.

Gibson wheel set for this chassis is £27.50 post free if ordered with the chassis. If ordered separately please add £3.00 P & P



Mashima 1420D motor £27.50 post free if ordered with the chassis kit.  (Not sold separately)



How to order.  Go to the "Contact US" button and order by email or by telephone on 01670 362451. If you're ordering by mail, including a contact number or email address would be beneficial in the event of a query about your order.

Cheques should sent with your order and be made payable to "52F Models".
